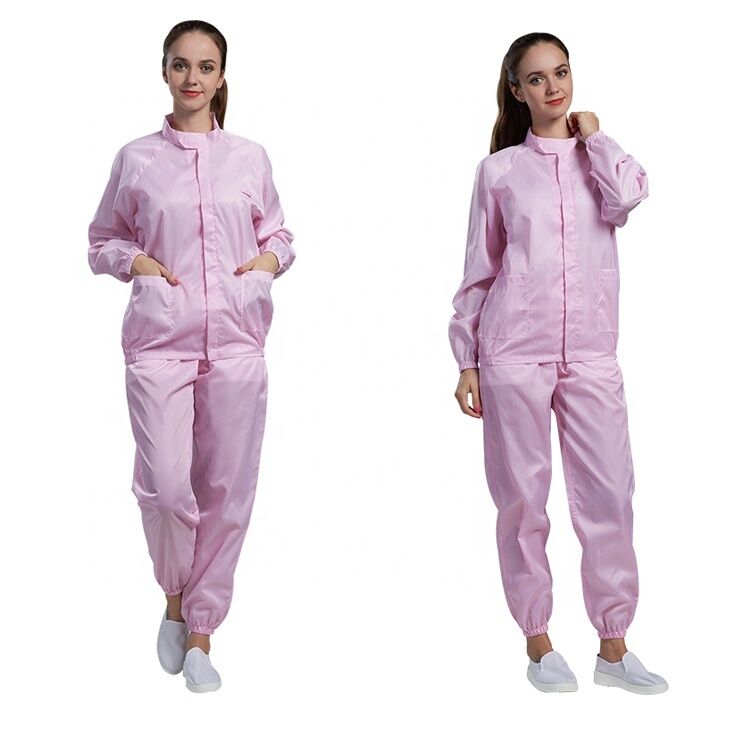

H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
  • H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing
H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing

H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing

Herkunftsort Shanghai, China
Markenname Hanyang clean
Modellnummer H-1106
Produkt-Details
Materialzusammensetzung:
99 % Polyester, 1 % leitfähige Kohlenstofffaser
Oberflächenwiderstand:
10⁶-10⁷ Ω
Punktimpedanz:
≤10⁸ Ω
Stoffgewicht:
≈110g/m² (100D), ≈105g/m² (75D)
Stoffdichte:
165*80 b/cm (100D), 158*92 b/cm (75D)
Leitfähiger Faserspalt:
5 mm (100D), 4,5 mm (75D)
Elektrostatische Dissipation:
<0,5 s (5000 V bis 50 V)
Reibungsspannung:
<300V
Ladezustand:
0,18 µC/Satz
Cleanroomklasse:
Klasse 1000 (Streifen), Klasse 100 (Gitter)
Garnspezifikation:
100D×100D-Streifen
Typ der Befestigung:
Reißverschluss
Taillenanpassung:
Verstellbarer Rahmen
Betriebstemperatur:
20°C ± 5°C
Betriebsfeuchtigkeit:
35 % ± 5 %
Hervorheben:

ESD clean room clothing

,

anti-static safety suit

,

ESD garment with warranty

Produkt-Beschreibung
Technical Parameter
Specifications  100D 48F*100D 48F(100D materials) Technical Requirements Test Results Single determination
75D 72F*75D 72F(75D materials) / / /
Weight (g) ≈ 110g/m2(100D);≈ 105g/m2(75D) / / UP TO STANDARD
Density(b/cm) 165*80 b/cm(100D);158*92 b/cm(75D)
Electrical Resistance 106-109(ESD stripe),                  106-108(ESD grid)
Electrostatic dissipation time less 0.5s from5000V to 50V(Adapt to Class100)
Resistance Value Surface Resistance:106-107Ω;point to point impedance:≤108Ω
Charge(µC/set) / Grade A<0.20;Grade B:0.20-0.60 0.18
Environment Temperature:20℃±5℃;  Relative Humidity:35%±5% Environment Temperature:20.1℃;Relative Humidity:35.1%
Static wire gap 5mm(100D);4.5mm(75D) / /
Cleanroom Class standard Antistatic Stripe material:Class 1000                                         Antistatic Grid material:Class 100 / /



Place of Origin:Jiangsu, China
Brand Name:Hanyang Clean
Model Number:H-1106
Product name:ESD Anti-static coverall jumpsuit
Details: Jacket & pant split design ,adjustable stand collar
pulling zipper,chest loop,arm pen pocket
elastic cuff,elastic side waist
Material: 99%Polyester& 1% Carbon Conductive Fiber
Yarn:100DX100D strip
Conductive fiber interval :5mm strip
Color:White, Blue or Customized
Style: Unisex design
Surface Resistance:10e6~10e9 Ω
Density:1.2mc/M
Friction voltage:<300V
Standard :GB 12014-2019
Performance grade:10000/100000 degree or D level
Function:ESD Protective,dust-proof
Size:From S to 4XL,customized
Feature:comfortable,Excellent barrier of particulate,cleanness
Application: Pharmaceuticals,Biotechnology
Logo: print or embroidery accepted

H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 0

H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 2H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 4H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 6H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 8H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 10H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 12H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 14H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 16H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 18H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 20H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 22H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 24H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 26H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 28H-1106 Antistatic ESd Garment Clean Room Clothing Anti-Static Suit Safety Clothing 30

Umbauten:

statischer AntiOverall,

statische Arbeitskleidungsantikleidung,

statische Antiuniform
